Humidifier MODEL DEW – UAS
ตั้งพื้น / เคลื่อนย้ายได้

Humidifier MODEL DEW – UAS

Product Code:
Product Model
Product Details

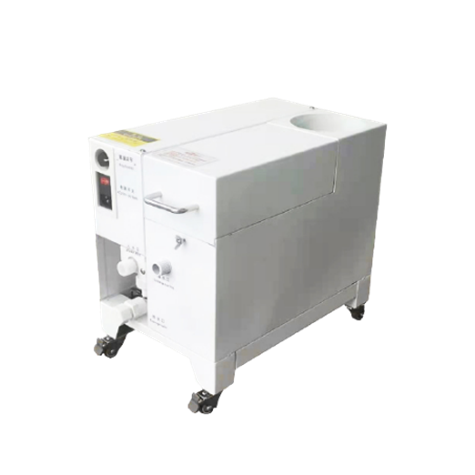

Humidifier MODEL DEW – UAS, industrial ceiling-recessed/ceiling-suspended humidifier with chemical-resistant plastic body for corrosion protection. Available in 3 models. Suitable for laboratories, chemical plants, and areas with chemical vapors in the air.
Download Manual
Contact for Purchase

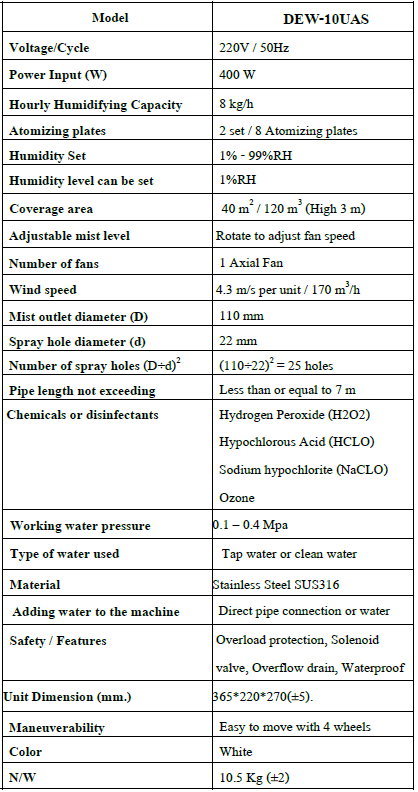

ModelDEW-10UAS
Voltage/Cycle220V / 50Hz
Power Input (W)400 W
Hourly Humidifying Capacity8 kg/h

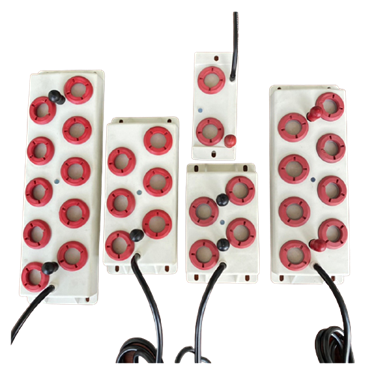

Atomizing plates2 set / 8 Atomizing plates
Humidity Set1% - 99%RH
Humidity level can be set1%RH
Coverage area40 m² / 120 m³ (High 3 m)
Adjustable mist levelRotate to adjust fan speed
Number of fans1 Axial Fan
Wind speed4.3 m/s per unit / 170 m³/h
Mist outlet diameter (D)110 mm
Spray hole diameter (d)22 mm
Number of spray holes (D÷d)²(110÷22)² = 25 holes
Pipe length not exceedingLess than or equal to 7 m
Chemicals or disinfectantsHydrogen Peroxide (H2O2) Hypochlorous Acid (HCLO) Sodium hypochlorite (NaCLO) Ozone
Working water pressure0.1 – 0.4 Mpa
Type of water usedTap water or clean water
MaterialStainless Steel SUS316
Adding water to the machineDirect pipe connection or water
Safety / FeaturesOverload protection, Solenoid valve, Overflow drain, Waterproof
Unit Dimension (mm.)365*220*270(±5).
ManeuverabilityEasy to move with 4 wheels
ColorWhite
N/W10.5 Kg (±2)
